Examples

In this section Bellhop capabilities are illustrated by providing the input file used for different types of calculations. In all cases we are going to consider a Munk deep water profile, between 0 and 5000 m depth, a 50 Hz source at 1000 m depth, a ray step of 100 m, and 70 rays between -13$^{\circ}$ and 13$^{\circ}$. Sound speed at bottom is 1600 m/s, bottom density is 1.8 g/cm$^3$ and bottom attenuation is 0.8 dB/$\lambda$. The environment is illustrated in Fig.1.

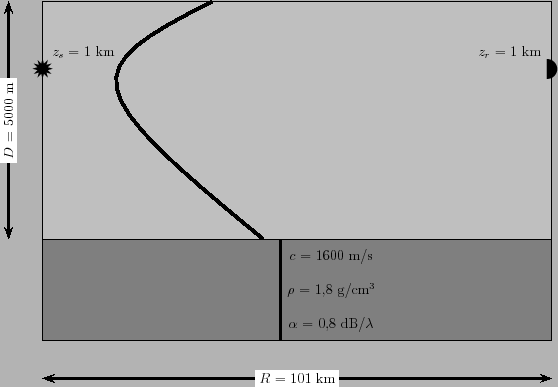

Figure 1: Schematic of the baseline deep water scenario considered in the examples.
